Germany’s Solar Bridge Story: From a 1996 Patent to Bonn’s Kennedybrücke

Search “Germany solar bridge” and it is easy to come away thinking a single, continuous story exists: an idea from 1996 that eventually became a famous bridge. That is not what the record shows. There are two separate, only loosely connected histories here, and treating them as one is where most casual accounts of this topic go wrong.

The idea: In 1996, a German engineer, Manfred Bock, filed a patent application for a bridge design that integrated solar photovoltaic cells and solar thermal collectors directly into the bridge’s own structural surfaces — the main girders and wind-bracing members, angled toward the sun. The application was published by the German Patent and Trade Mark Office (DPMA) in 1997. Google Patents lists its current legal status as withdrawn. A withdrawn application means the applicant did not pursue it to grant — it says nothing about whether the underlying idea was good, only that this specific legal filing did not proceed. Crucially, a patent filing is a description of a proposed invention, not a construction record. Nothing in the patent record indicates the design was ever built.

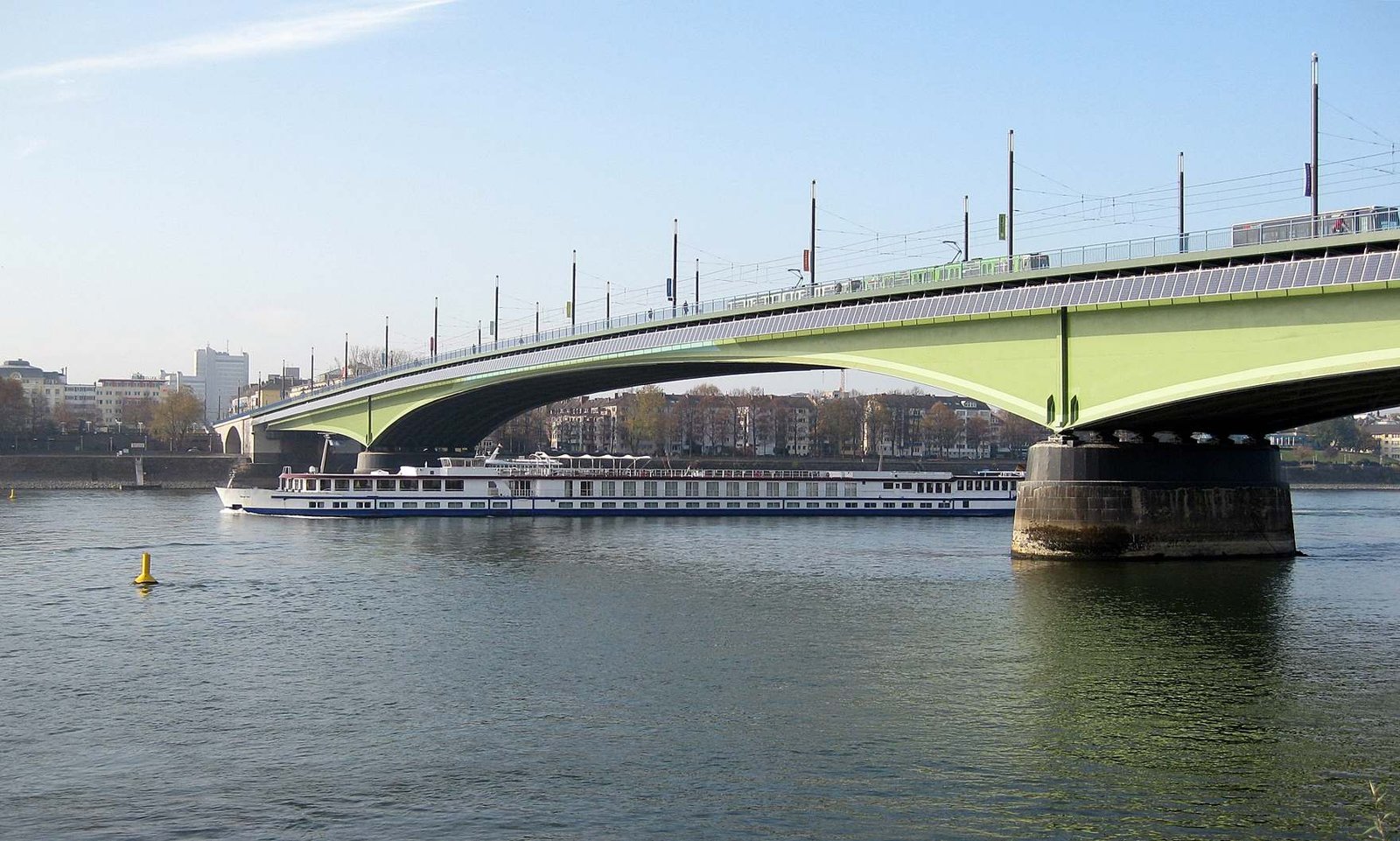

The built project: The bridge people are usually actually asking about is the Kennedybrücke, a road bridge crossing the Rhine in Bonn, North Rhine-Westphalia. In March and April 2011 — fifteen years after Bock’s patent filing, and unrelated to it in the public record — a 392-module, 90-kilowatt-peak solar array was installed across the bridge’s southern face. It was proposed to the city in 2007, rejected on cost grounds in 2009, and ultimately self-financed by the solar manufacturer SolarWorld AG once panel prices had fallen enough to make the project worthwhile for the company as a visibility and demonstration project rather than a city-funded public utility.

These are not the same story continued. There is no public documentation connecting Bock’s 1996 patent application to the later Kennedybrücke project, its engineers, or its funders. The honest version of this history is: Germany produced an early concept for solar-integrated bridges in the 1990s, and a separate, later, privately funded project actually put solar panels on a German bridge in 2011. Both are real. Neither one is the other.

Patent DE19650024A1, titled “Solar power bridge construction” (Solarstrombrücke), was filed with a priority date of August 16, 1996 and published on May 15, 1997. Its listed inventor is Manfred Bock, a German engineer (Diplom-Ingenieur), filed as an individual applicant rather than through a company. Google Patents’ current record shows the application’s legal status as withdrawn — the applicant did not pursue it through to a granted, enforceable patent.

The design itself is genuinely inventive on paper. Rather than bolting standard solar panels onto an existing structure, Bock’s proposal integrated the generating surfaces into the bridge’s own structural elements: main girders and wind-bracing members angled to face the sun, doubling as both load-bearing structure and solar collector. The application describes variants for parallel-chord truss bridges, cable-stayed bridges and arch bridges, for both new construction and retrofits, with photovoltaic cells for electricity and separate solar-thermal collectors capable of heating road surfaces above 100°C — a de-icing application — plus an optional sound-dampening treatment on the roadway-facing side.

What the patent does and does not demonstrate: A patent application is a legal description of a proposed invention, examined for novelty and filed to establish priority — it is not a construction record, a funding commitment, or proof that anyone attempted to build the design. Being withdrawn specifically means Bock (or his representatives) chose not to complete the examination process, for reasons the public patent file does not explain — commonly cost, a decision the invention wasn’t commercially viable, or a simple lapse. No later German bridge project, including the Kennedybrücke, cites this patent as its technical basis in the sources available for this article. Treating the 1996 filing date as the date “Germany built its first solar bridge” is the specific factual error this article exists to correct.

A bridge-mounted solar system works exactly like any other grid-connected photovoltaic array — the bridge simply supplies the mounting surface instead of a roof or a field.

1. Sunlight hits the modules. Photovoltaic cells inside each panel convert sunlight directly into direct-current (DC) electricity through the photovoltaic effect. Orientation matters: south-facing surfaces (in the Northern Hemisphere) capture the most direct sun, which is why Kennedybrücke’s array sits on the bridge’s south side.
2. Mounting frames carry the panels. On a retrofit like Kennedybrücke, aluminum or steel racking is bolted or clamped to the existing bridge structure, engineered to add minimal extra dead load and to withstand wind and vibration from passing traffic.
3. DC cabling runs the current to inverters. Weatherproof cable runs, routed to avoid interfering with bridge maintenance access or expansion joints, carry the DC output to inverter units, typically housed in a weatherproof cabinet at one end of the span.
4. Inverters convert DC to grid-compatible AC. Since the public electricity grid runs on alternating current (AC), inverters convert the panels’ DC output and synchronize its frequency and voltage to match the grid.
5. The AC electricity feeds the public grid. A grid connection point ties the system into the local distribution network — at Kennedybrücke, into Bonn’s public grid — with metering to record how much electricity is generated and fed in, and a public display board showing live output.

Structural engineers additionally have to account for factors a rooftop installation rarely faces: the bridge’s own thermal expansion and contraction, live-load vibration from vehicles, wind loads specific to a span over open water, corrosion risk from river humidity, and maintenance access that cannot block the roadway or the waterway below.

The Kennedybrücke’s own history is the clearest available answer, and it is not an unqualified “yes.” Bonn’s municipal administration reviewed a city-funded version of this exact project in 2007–2009 and rejected it specifically on profitability grounds — at the module prices and feed-in tariffs of that period, the numbers didn’t work for a public-sector business case. What changed the outcome wasn’t a new subsidy; it was a private company willing to accept a different return profile than a city government would. SolarWorld’s calculation is not fully public, but the project reads as much as a visibility and demonstration investment — a working advertisement for the company’s own panels, on a landmark public structure in its home city — as a pure electricity-revenue play, especially since it donates the feed-in remuneration rather than keeping it.

More generally, bridge-mounted solar carries cost factors that a ground-mount or rooftop system avoids: engineering review to confirm the structure can bear the added load, specialized mounting hardware suited to a bridge’s movement and vibration profile, and maintenance access that may require lane or river-traffic closures. Existing infrastructure can offset land-acquisition costs, but it doesn’t eliminate installation complexity. No public, itemized cost or return-on-investment figure for the Kennedybrücke project is available in the sources reviewed for this article; this article does not estimate one rather than guess. What is documented is that the site’s own economics failed a municipal viability test once, and only became attractive to a private funder with a different set of incentives.

The Kennedybrücke’s 90 kilowatts of installed capacity displaces a small amount of grid electricity that would otherwise come from Germany’s broader generation mix, and doing so on an existing structure avoids the land-use footprint of an equivalent ground-mounted solar farm. That is a genuine, if modest, environmental benefit — roughly enough generation for 20 households is not a large share of Bonn’s electricity demand, but it is real, metered, grid-connected renewable output sustained for over a decade.

It is not a “zero-emission bridge,” and this article avoids that framing. The bridge itself, and its 2007–2011 renovation, carried substantial embodied carbon from steel, concrete and construction machinery, entirely independent of the solar array. The panels themselves also carry embodied emissions from silicon refining, manufacturing and transport before they ever generate a kilowatt-hour, typically offset by clean generation within the first few years of operation but not zero from day one. End-of-life panel recycling, an increasingly regulated process across the EU, is a separate, later-stage environmental consideration this article notes but does not have Kennedybrücke-specific data on.

The Kennedybrücke project sits inside a much longer German policy arc, though it was not itself a government-funded program. West Germany’s 1,000 Roofs Programme (1990–1995) gave the country its first field experience with grid-connected residential solar. The 100,000 Roofs Programme, a federal soft-loan scheme running from January 1999 to mid-2003, scaled that up roughly tenfold. The decisive shift came with the Renewable Energy Sources Act (Erneuerbare-Energien-Gesetz, EEG), which took effect April 1, 2000, guaranteeing grid access and a fixed, above-market feed-in tariff for renewable generators for up to 20 years. That law is widely credited with turning German solar from a subsidized niche into a bankable mainstream investment, driving a roughly 70% fall in installation costs between 2000 and 2007 and pushing Germany’s share of renewables in electricity consumption from 6.2% in 2000 to well over 20% within a decade and a half.

By the time SolarWorld agreed to fund the Kennedybrücke array in 2010, this policy environment — not a bridge-specific subsidy — is what made a privately financed, grid-feeding installation on public infrastructure a financially coherent choice for a solar manufacturer, even after the city itself had already said no on cost grounds.
